ERT FLOWSCREEN
Minimize risk and uncertainty with our portable desktop spirometer
PORTABLE, ALL-IN-ONE DESKTOP SPIROMETRY SYSTEM
The ERT FlowScreenTM measures, records and assesses flow‑volume loop, volume‑time curve and related parameters. The system combines a high‑quality flow sensor with automated test acceptability and overall quality monitoring as well as secure data transmission for centralized data collection and analysis. The online assessment of the spirometry data based on the latest ATS/ERS 2005 guidelines for spirometry can also be viewed on the device and printed directly on the built‑in color inkjet printer. This easy‑to‑use system can be rapidly customized for your specific needs.
> Centralized data collection via modem or web upload
> Customizable workflows and quality

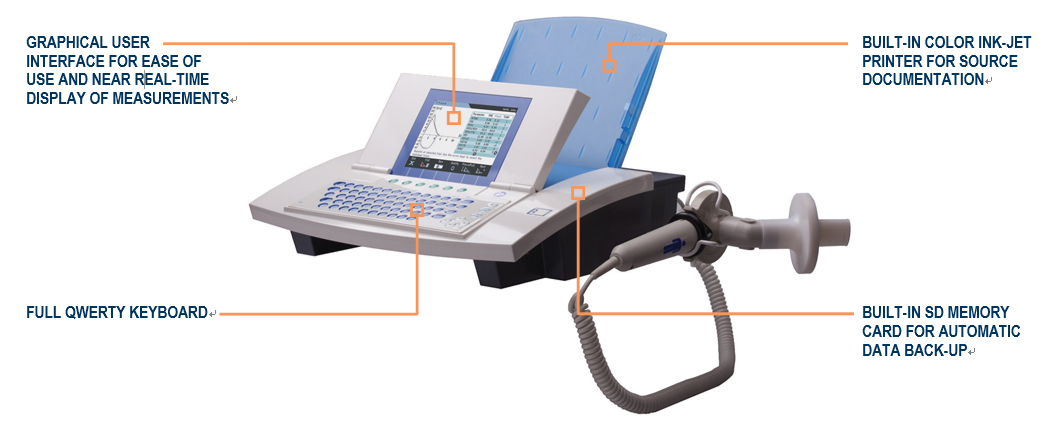

FLOWSCREEN FEATURES
> Flow‑volume and slow spirometry measurement with detailed quality assessment
> Graphical user interface for ease of use and near real‑time display of measurements
> Built‑in color ink‑jet printer for source documentation
> Built‑in SD memory card for automatic data back‑up
> Full QWERTY keyboard
> ATS/ERS standards compliant
> FDA 21 CFR Part 11 compliant
> Connects to our EXPERT® platform
TECHNICAL SPECIFICATIONS
|
Flow measurement |
High‑quality pneumotach |
|
Flow range |
0.1 to ± 16 L/s |
|
Flow accuracy |
0.1 to 14 L/s: +/‑5%/0.2 L/s |
|
Flow resolution |
10 mL/s |
|
Resistance |
0.05 kPa/(L/s) at 10 L/s |
|
Volume measurement |
Digital integration |
|
Volume range |
0.1 to 8 L |
|
Volume accuracy |
0.5 to 8 L: +/‑ 3 %/0.05 L |
|
Volume resolution |
1 mL |
|
Display |
High‑resolution graphical LCD, backlit |
|
L x W x H |
45.5 cm x 28.0 cm x 38.0 cm |
|
Screen display |
(LxH) 11.5 cm x 8.7 cm |
